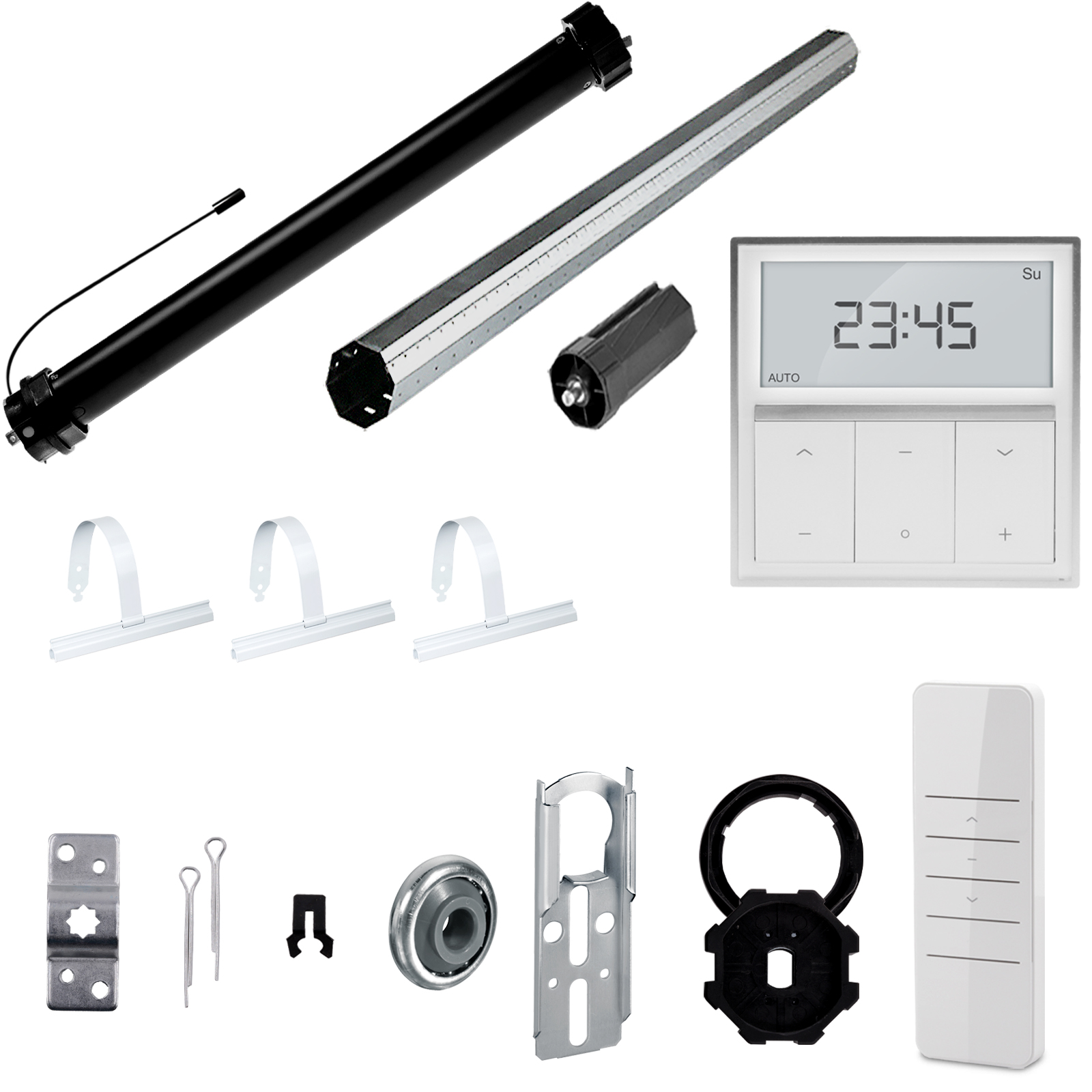

NOBILY complete set PRE5 incl. Radio timer Exquisit wall transmitter
Product number:
AL-PRE510-WT1
Product information "NOBILY complete set PRE5 incl. Radio timer Exquisit wall transmitter"
Thanks to the radio technology, no cables have to be laid between the drive and the control element when installing the roller shutter motors. Motors with integrated radio solutions can be installed easily, quickly and inexpensively. More comfort in everyday life, the ideal solution for retrofitting existing roller shutters or quite simply as a complete new installation. The powerful, robust electronic radio drives for roller shutters, sun protection, screens and film screens.
- Maxi radio motor with electronic limit switch
- Tensile force 10 - 40 Nm corresponds to 25kg - 90kg
- suitable for the 60 mm octagonal shaft
- incl. 1-channel wall transmitter Timer Exquisit (timer)
Product highlights
- Maxi - wireless roller shutter motor
- Electronic limit switch
- Convenient setting of the end positions
- reliable and powerful
- easy and safe installation
- Thermal switch (overload protection)
- Suitable for different shafts, adaptation possible
- Can be combined with our NOBILY wireless handheld transmitters and timers
- incl. 1-channel wall transmitter Timer Exquisit
| Motortyp: | Funk-Elektronisch |
|---|---|
| Steuerungsart: | Funkgebunden |
| Steuerungsfunktionen: | Automatikbetrieb, Security Urlaubsschaltung, Tagesprogramm, Unidirektional, Wochenprogramm |
| Wellendurchmesser: | Für 60mm Achtkantwelle |
| Name: | PRE5 10 / 15-60 | PRE5 20 / 15-60 | PRE5 30 / 15-60 | PRE5 40 / 12-60 |
| Motor: | Maxi - Motor | Maxi - Motor | Maxi - Motor | Maxi - Motor |
| Motor type: | Electronic radio drive | Electronic radio drive | Electronic radio drive | Electronic radio drive |
| Roller shutter shaft: | 60 er | 60 er | 60 er | 60 er |
| Tensile force in Nm: | 10 Nm | 20 Nm | 30 Nm | 40 Nm |
| max pulling force (kg): | 25 | 50 | 75 | 90 |
| Speed Umin: | 15 rpm | 15 rpm | 15 rpm | 15 rpm |
| Power consumption in watts: | 112 watts | 161 watts | 200 watts | 228 watts |
| Current consumption A: | 0.49 A | 0.69 A | 0.87 A | 0.99 A |
| Nominal voltage V: | 230 V | 230 V | 230 V | 230 V |
| Frequency: | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Degree of protection: | IP 44 | IP 44 | IP 44 | IP 44 |
| Thermal switch: | Yes | Yes | Yes | Yes |
| Limit switch-off: | 30 | 22 | 22 | 22 |
| Motor head cm: | 1.60 cm | 1.60 cm | 1.60 cm | 1.60 cm |
| Pipe diameter cm: | 4.50 cm | 4.50 cm | 4.50 cm | 4.50 cm |
| Motor length cm: | 60.70 cm | 60.70 cm | 63.70 cm | 63.70 cm |
| Cable length: | 2.0 m | 2.0 m | 2.0 m | 2.0 m |
| Guarantee: | 5 years | 5 years | 5 years | 5 years |
| Article No. : | 1156001000001 | & nbsp; 1156002000001 | 1156003000001 | 1156004000001 |
| EAN no. : | & nbsp; 4260355821101 | & nbsp; 4260355821118 | 4260355821125 | 4260355821842 |
