AUTOSUN 2, T3.5 EHz DC, 3 Nm
€279.90*
Available in 3 days, delivery time 1-3 days
SIMU AUTOSUN 2, the 100% autonomous solar solution
The solar powered system for roller shutters on roof or facade surfaces does not require any wiring for power supply or control. The Ni-MH battery supplied by the solar panel has a 2.2AH storage capacity and sits well protected in an aluminum case. This allows a system autonomy of approx. 15 days without sun with 2 operating cycles / day.

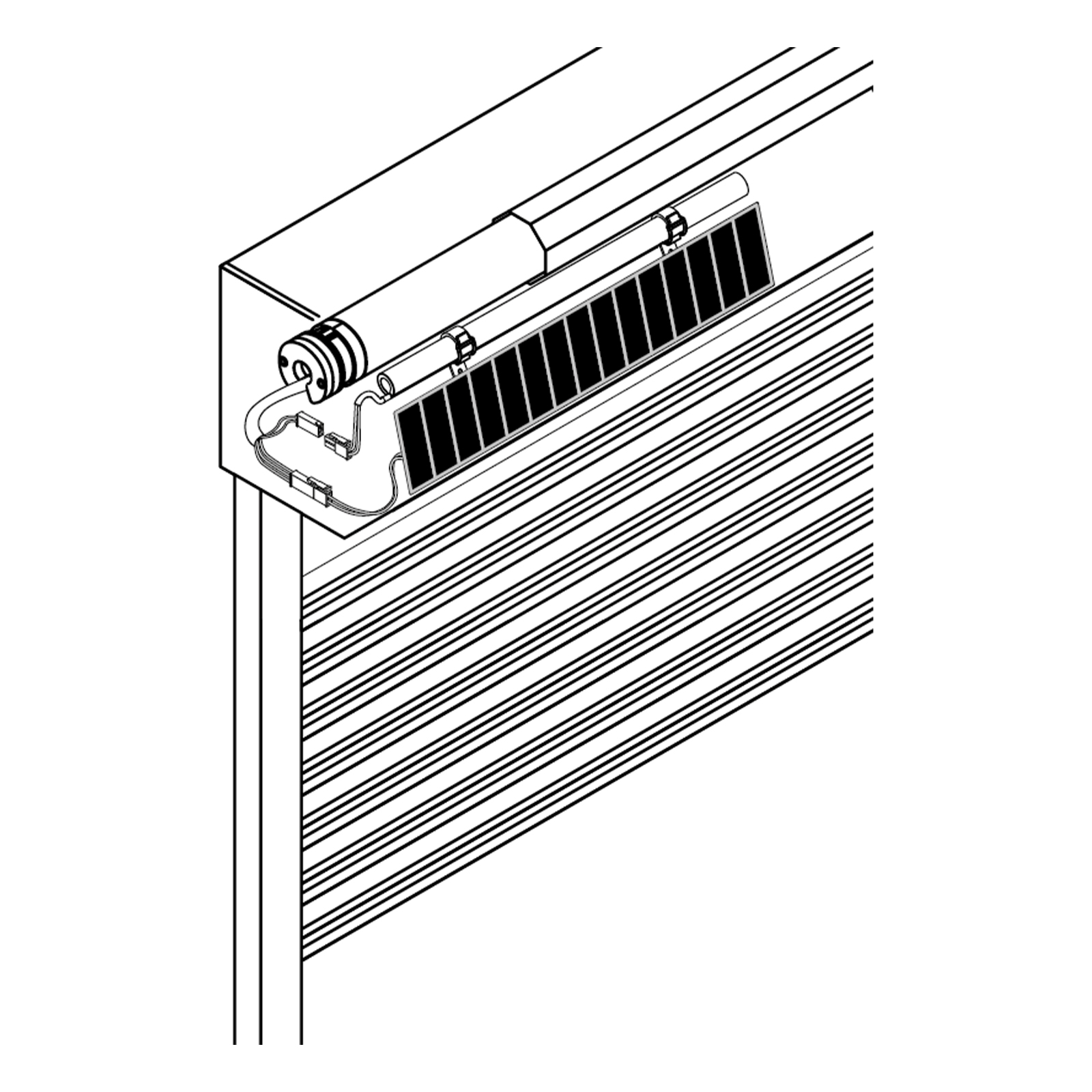

The synthetic resin photovoltaic panel can be conveniently screwed onto the front-mounted box or the facade, or optionally mounted using a clip system or double-sided industrial adhesive tape.
The plug connections are attached in such a way that accidental polarity reversal is impossible.
Thanks to the SIMU HZ radio technology, the drive is compatible with all SIMU HZ transmitters. Also SmartHome-capable and controllable via the SIMU LiveIn Box or the MEDIOLA AIO Gateway.
The end positions can take place automatically, semi-automatically or manually. The drive has obstacle detection and switches off automatically if the curtain hits an obstacle when it is closed. The frost protection function prevents damage to the motor if the curtain is blocked by frost or jamming in the guide rails when it is opened.
A new motor T3.5 EHz 12V DC:
- After connecting to & nbsp; the battery, it uses the energy to open or close the roller shutters
- Compatible with all transmitters in the SIMU-Hz range (sequential and functional)
- Available with 3, 6 and 10 & nbsp; Nm & lt;
- Shutdown in the event of obstacle and frost detection, & nbsp; soft start, soft stop
- Intermediate position
Battery:
- for storing energy
- For connection to solar panel and motor
- Can be attached with pop rivets or & nbsp; brackets
- Can also be charged using the charger
Solar panel :
- Converts solar energy into electrical energy
- Installation with pop rivets or adhesive strips on the roller shutter box. Alternatively on the wall with brackets and a 5 & nbsp; m long extension cable.
| Name: | T3.5 EHz DC & nbsp; 03/23 (12V) | T3.5 EHz DC 06/18 (12V) | T3.5 EHz DC 10/12 (12V) |
| Motor: | Mini - Motor | Mini - Motor | Mini - Motor |
| Motor type: | radio motor | radio motor | radio motor |
| Roller shutter shaft: | 40 er | 40 er | 40 er |
| Tensile force in Nm: | 03 Nm | 06 Nm | 10 Nm |
| Speed Umin: | 23 rpm | 18 rpm | 12 rpm |
| Power consumption in watts: | 17 watts | 26 watts | 30 watts |
| Current consumption A: | 1.4 A | 2.2 A | 2.4 A |
| Nominal voltage V: | 12 V DC | 12 V DC | 12 V DC |
| Frequency: | 50 Hz | 50 Hz | 50 Hz |
| Protection class: | IP 44 | IP 44 | IP 44 |
| Thermal switch: | Yes | Yes | Yes |
| Limit switch-off: | 40 | 40 | 40 |
| Pipe diameter cm: | 3.50 cm | 3.50 cm | 3.50 cm |
| Motor length cm: | 471 mm | 471 mm | 471 mm |
| Guarantee: | 2 years | 2 years | 2 years |
| Article No. : | & nbsp; | & nbsp; | & nbsp; |
| EAN no. : | & nbsp; | & nbsp; | & nbsp; |
