Single Relay Z-pulse self-holding (120 sec.)
€29.90*
% €32.90* (9.12% saved)Available, delivery time: 1-3 days
Product number:
1221301104007
Product information "Single Relay Z-pulse self-holding (120 sec.) "
NOBILY Z-Pulse
THE ISOLATION RELAY FOR A MOTOR
Professional craftsman quality , Made in Germany, not a cheap product from the Far East.
The isolating relay & lsquo; Z-Pulse & lsquo; offers connection options for a control center
(e.g. roller shutter timer) and a button for individual operation
- Prevents unauthorized parallel connection of tubular motors
- Possibility to connect a central control element (e.g. timer) and a single control element with push button function
- Available exclusively from Nobily
- Made in Germany
- For roller shutter and blind motors
- Easy and quick assembly
- Little wiring effort

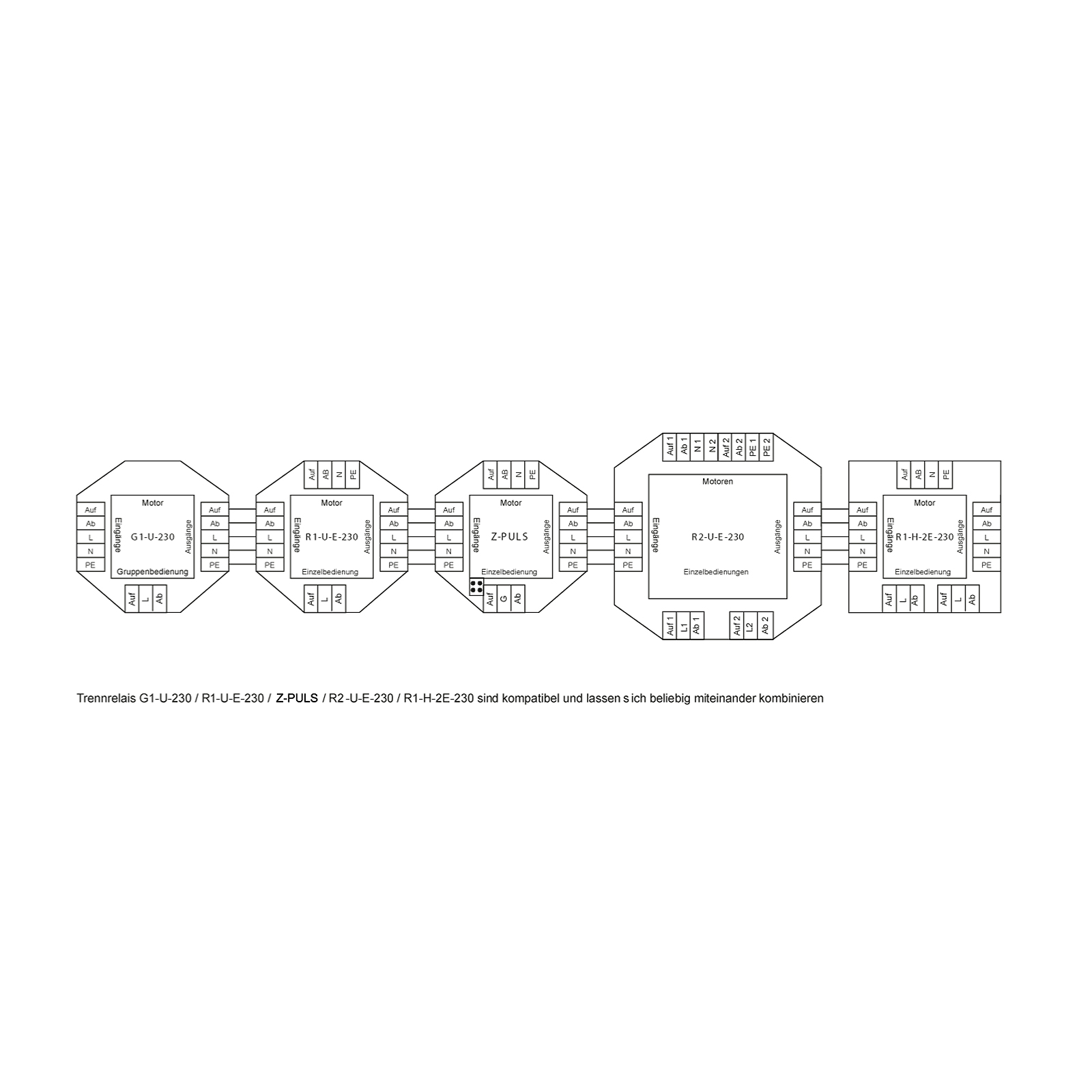

- If there is more than 1 motor with further & lsquo; Z-pulse & lsquo; combinable
- Simple and logical wiring
- 2 year guarantee
| Einbauart: | Unterputz |
|---|---|
| Steuerungsart: | Kabelgebunden |
| Trennrelais: | Einzelrelais für 1. Motor, mit Einzelbedienung, mit Selbsthaltung |
| Type: | Electronic isolating relay |
| Name: | Z-PULSE |
| Type of isolating relay: | single relay |
| Central / group operation: | Yes |
| Single service: | Yes |
| Self-holding max120sec: | Yes |
| Jog mode: | Yes |
| Connectable drives: | 1 |
| Voltage drive: | 230V, AC |
| Starting voltage: | 230V, AC |
| Current consumption: | 20 mA |
| Switching capacity: | 3 (AC1 / inductive) |
| Temperature range: | 0-60 degrees |
| screw terminals qmm: | 2,5 |
| Dimensions WHD mm: | 52/50/26 |
| Environmental conditions: | dry living spaces |
| Guarantee: | 2 years |
| Article No. : | 1221301104007 |
| EAN no. : | 4260355826908 |
