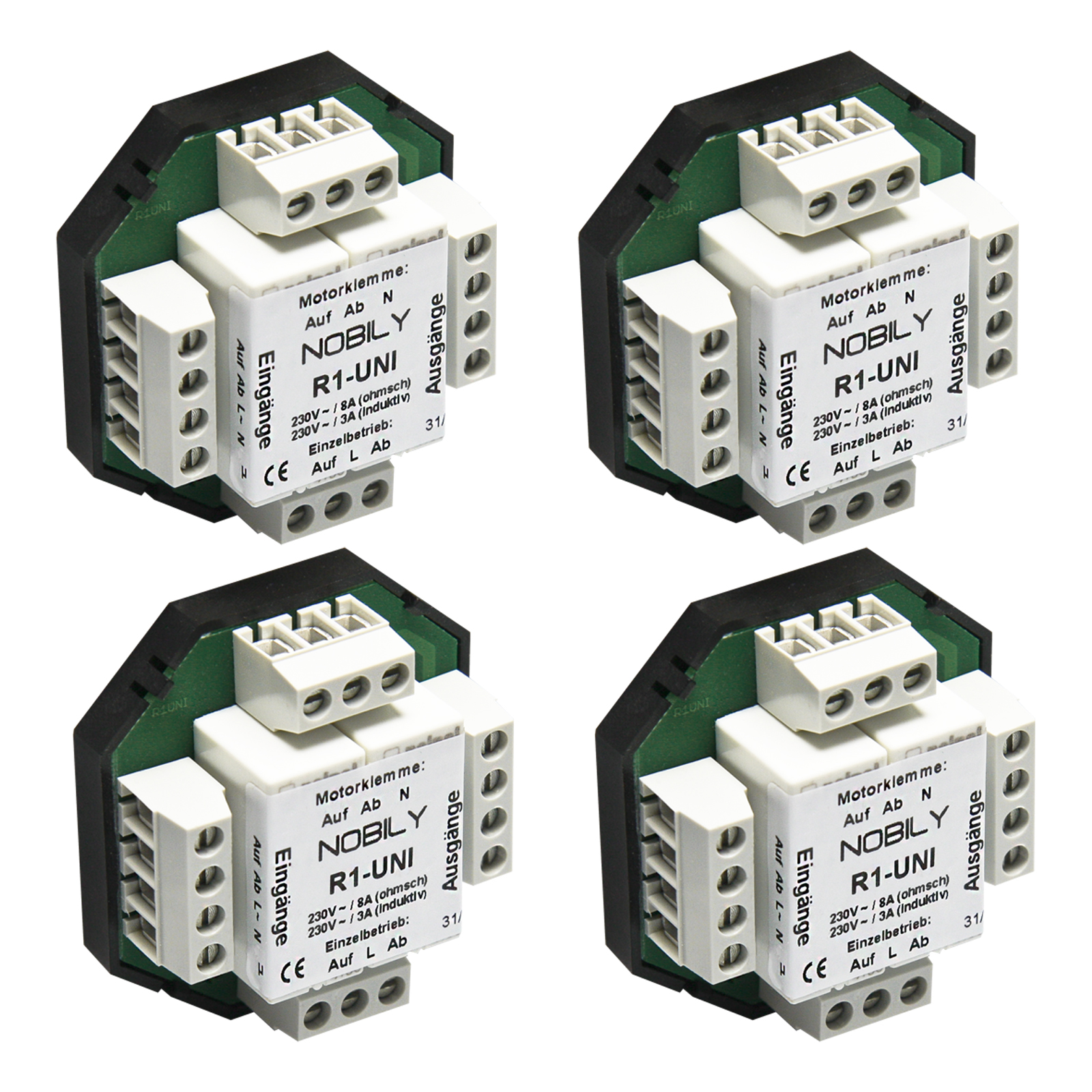

NOBILY single relay isolating relay R1-Uni-230
Product number:
1221301051004
Product information "NOBILY single relay isolating relay R1-Uni-230"
The intelligent professional isolating relay from Nobily for mechanical motors for individual, group and central controls.
Our isolating relays can be combined in any way, are simply and logically wired and, when connected in parallel, offer solutions for one motor or any number of motors.
- Made in Germany
- For roller shutter and blind motors
- Easy and quick assembly
- Little wiring effort
- Solutions for one motor or any number of motors
- 2 year guarantee
Product highlights
- Can be combined in any way
- Simple and logical wiring
| Einbauart: | Unterputz |
|---|---|
| Steuerungsart: | Kabelgebunden |
| Trennrelais: | Einzelrelais für 1. Motor, mit Einzelbedienung |
| Name: | Isolation relay |
| Name: | Nobily R1-Uni-230 |
| Type of isolating relay: | single relay |
| Central control: | Yes |
| Group service: | No |
| Single service: | Yes |
| Self-holding max180sec: | No |
| Jog mode: | Yes |
| Connectable drives: | 1 |
| Voltage drive: | 230V, AC |
| Control voltage: | 230V, AC |
| Current consumption: | 10 mA |
| Switching capacity: | 8 / 3A (AC1 / inductive) |
| Temperature range: | 0-60 degrees |
| screw terminals qmm: | 2,5 |
| Dimensions WHD mm: | 50/52/22 |
| Environmental conditions: | dry living spaces |
| Guarantee: | 2 years |
| Article No. : | 1221301051004 |
| EAN no. : | 4260355821941 |
