Memory-Switch
€21.90*
Available, delivery time: 1-3 days
Elegant in design and optimally integrable ...

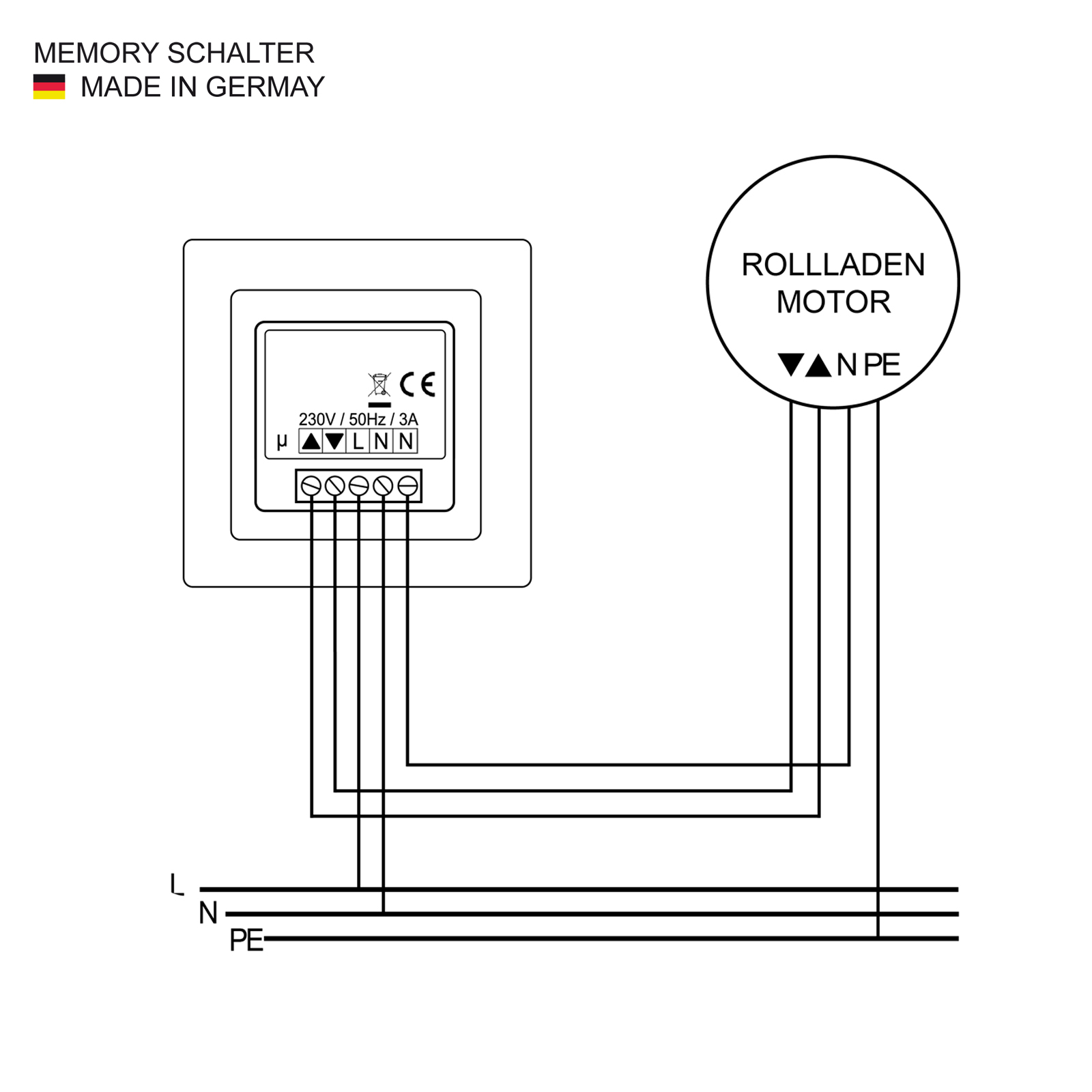

The simplest and most uncomplicated roller shutter control on the market. With our switch, wired roller shutter motors can be controlled automatically or manually.
- The easiest solution to control the time of your roller shutters
- Exclusive → Made in Germany
- Manual or automatic operation
- Suitable for various switch ranges 50 x 50 mm
- Available exclusively from NOBILY
MANUAL OPERATION
With the buttons ▲ and ▼ the motor can be moved up or down.
If the ▼ or ▲ buttons are pressed for 0.5 s, the motor is moved up or down to the end position.
The motor can be stopped at any time by pressing the ■ button.
AUTOMATIC OPERATION (= ON) --- Led on
Press a control key ▲ or ▼ for longer than 5 seconds at the desired time.
The LED flashes and then lights up permanently.
This command is saved and repeated every 24 hours
(Example: a command saved for 7:30 a.m. is changed every day 7:30 a.m. repeated)
CHANGING THE OPERATING MODE
To switch from manual operation to to change to automatic mode (or vice versa), press the stop button ■ for longer than 1 second.
Technical data
- Supply voltage: 230V / 50 Hz (+/- 10 %)
- Output contact: 3A
- Switching time of the relays (opening or closing): 3 min.
- Storage of programs in the event of a power failure: 3 hours.

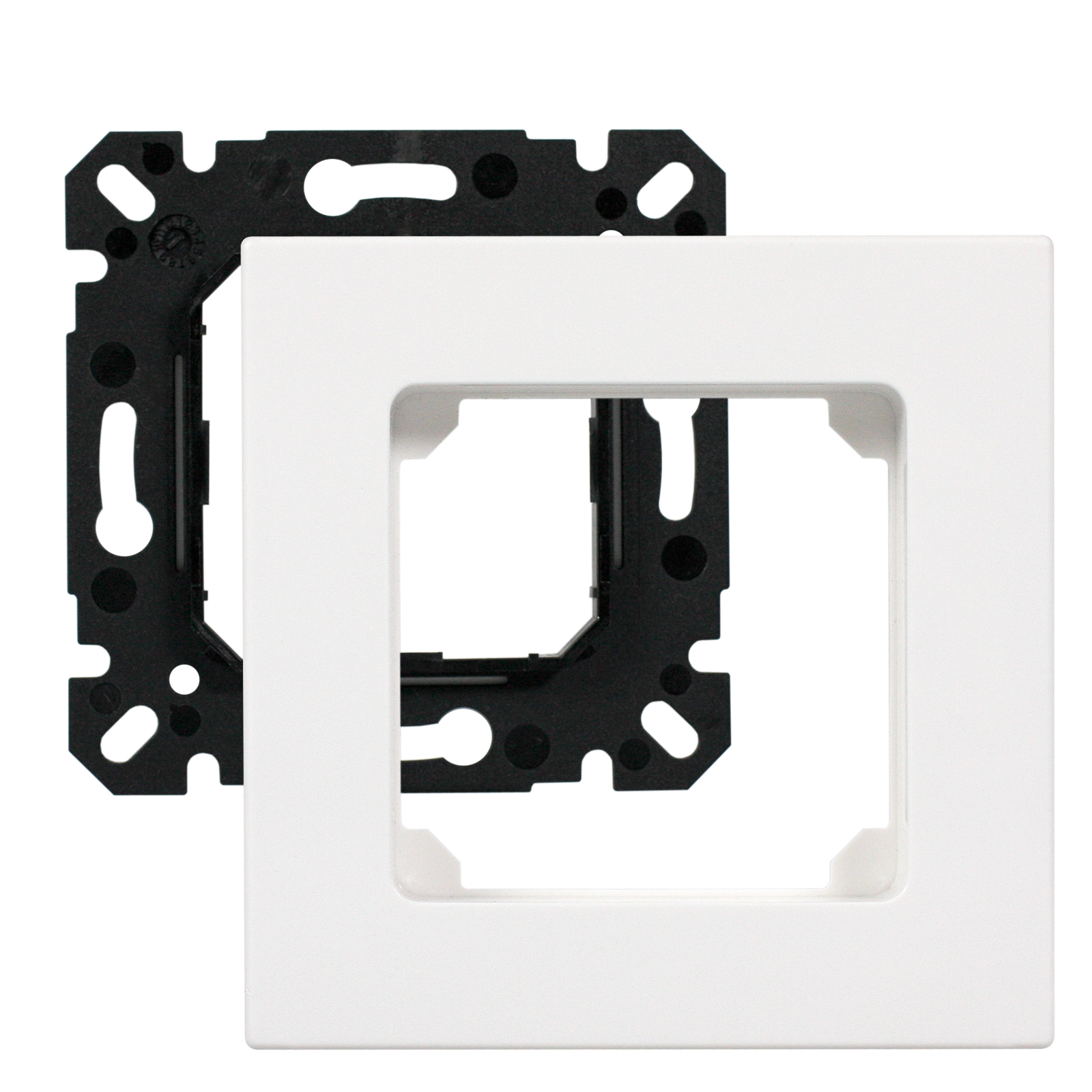

- Dimensions with frame W / H / D (mm): 80 x 80 x 42
- Dimensions without frame W / H / D (mm): 50 x 50 x 42

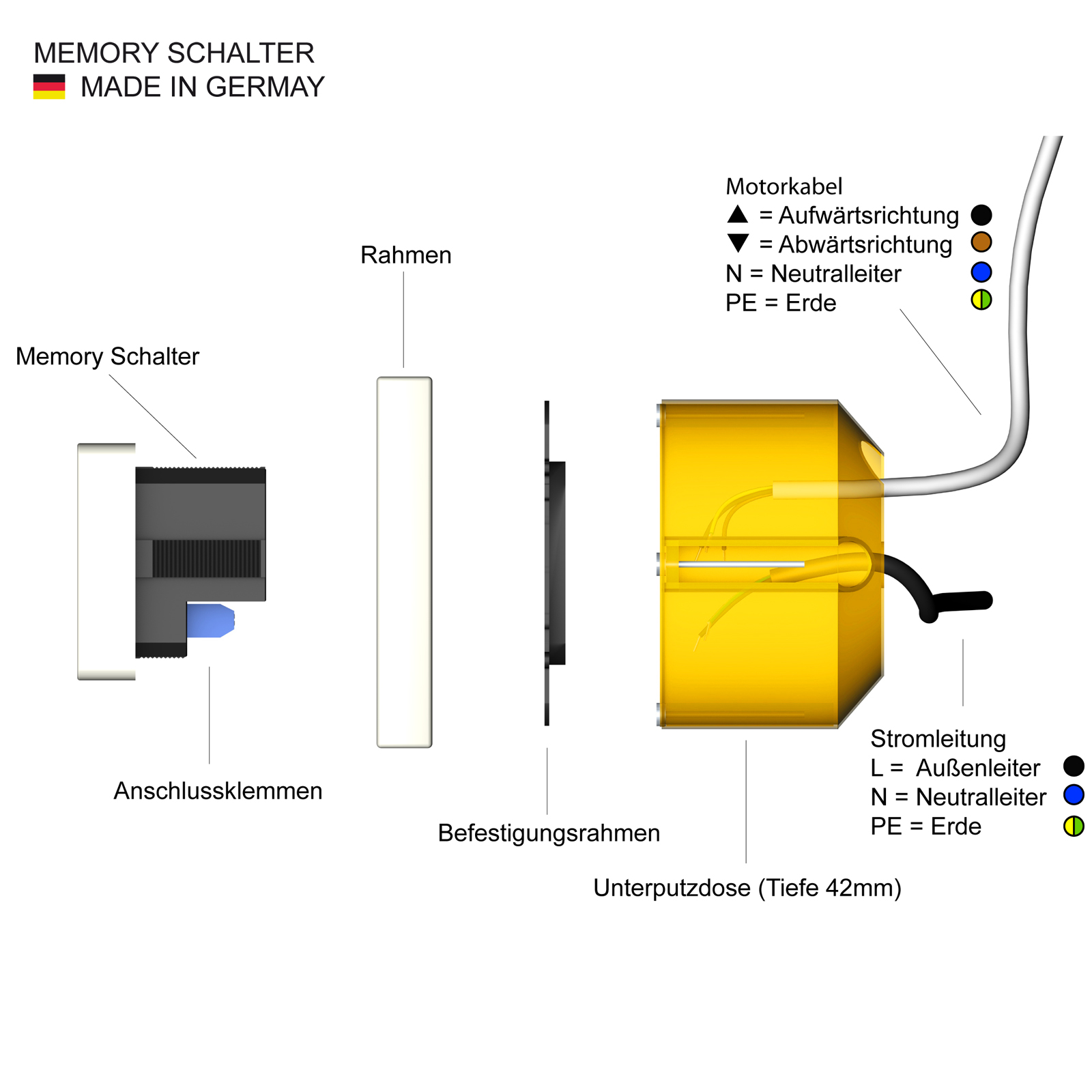

- Installation in flush-mounted box & Oslash; 60 mm, min. Depth 42 mm (recommended 60 mm)
- Operating temperature 0 ° C to + 60 ° C (0T60)
- Type of protection: IP20
- Protection class: Class II
| Einbauart: | Aufputz, Unterputz |
|---|---|
| Steuerung 50x50 mm: | Ja |
| Steuerungsart: | Kabelgebunden |
| Steuerungsfunktionen: | Automatikbetrieb, Memory Funktion |
